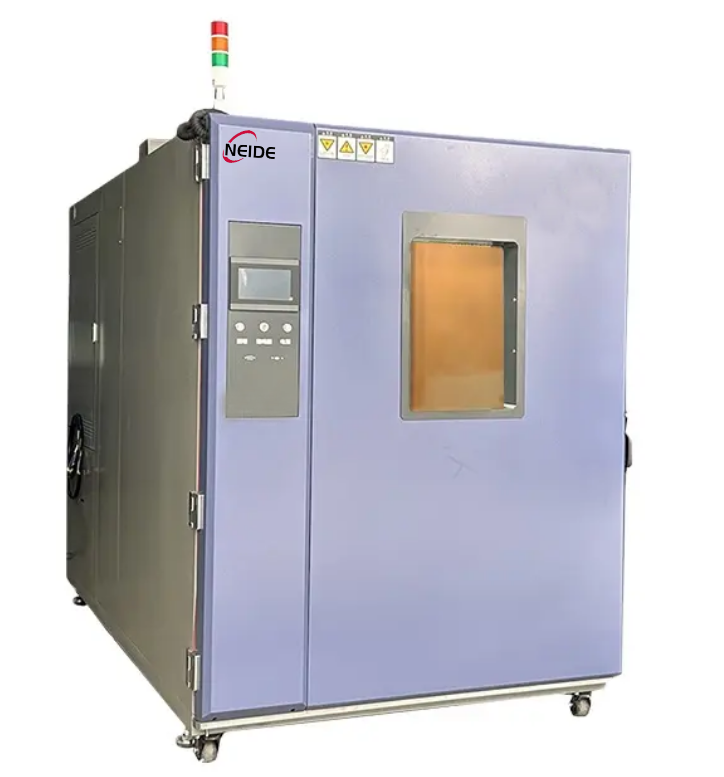

Floor Standing Temp And Humidity Tester Chamber Precision Controlled 380V

Name: Floor Standing Temp And Humidity Tester Chamber Precision Controlled 380V
Brand: Neide
Price: 1 USD

Brand Name : Neide

Model Number : ND-1500

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100sets/month

Delivery Time : 7-22 work days

Packaging Details : Wooden Box(standard export packaging)

Type : temp and humidity chamber

Working capacity : 2 liter

Temp range : -40℃-+150℃

Internal chamber material : Stainless steel 304

Exteral chamber material : Stainless steel/paint spray

Power supply : 380V

Warranty : 1 Year

Customized : Welcome

Factory : Yes

Customer : More than 500+

Material : SUS304 or customized

After-sales service : Yes

Transportation : By Sea

Reply for probme : Within 24 hours

Contact Now

Precision-controlled Floor-standing High And Low Temperature & Humidity Test Chambers For Diverse Applications

Product Description:

This chamber is designed to be floor-standing, which means they are relatively large and stable units. They typically have a robust outer casing made of high-quality materials such as stainless steel or powder-coated steel to ensure durability and resistance to corrosion. The interior is spacious enough to accommodate a wide range of test specimens, from small electronic components to larger industrial products. The chamber is equipped with a well-insulated door to prevent heat transfer and maintain the integrity of the internal environment.

The core functionality of this test chambers lies in their ability to precisely control temperature and humidity levels. The temperature range can usually vary from extremely low values, often reaching -70°C or lower, to high temperatures up to 150°C or more, depending on the specific model. Humidity levels can be adjusted anywhere from very low, around 10% relative humidity, to high levels approaching 98% relative humidity. Advanced control systems, such as microprocessor-based controllers, are used to maintain these settings with high accuracy, ensuring consistent and repeatable test results.

Major Specification:

Model

ND-1500

Internal dimension (W*D*H)

1200mm*1200mm*1500mm

External dimension (W*D*H)

1450mm*1250mm*1900mm

Temperature range

-40~+150℃

Temperature fluctuation

±0.5℃

Temperature uniformity

2℃

Cooling speed

1℃/min in average (without loading)

Heating speed

3℃/min in average (without loading)

Internal chamber material

SUS#304 stainless steel, mirror finished

External chamber material

Stainless steel

Cooling method

Air cooling

Controller

LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test

Insulation material

50mm high density rigid Polyurethane foam

Heater

Explosion-proof type SUS#304 stainless steel fins radiator pipe heater

Compressor

France Tecumseh compressor

Lighting

Heat resistance
